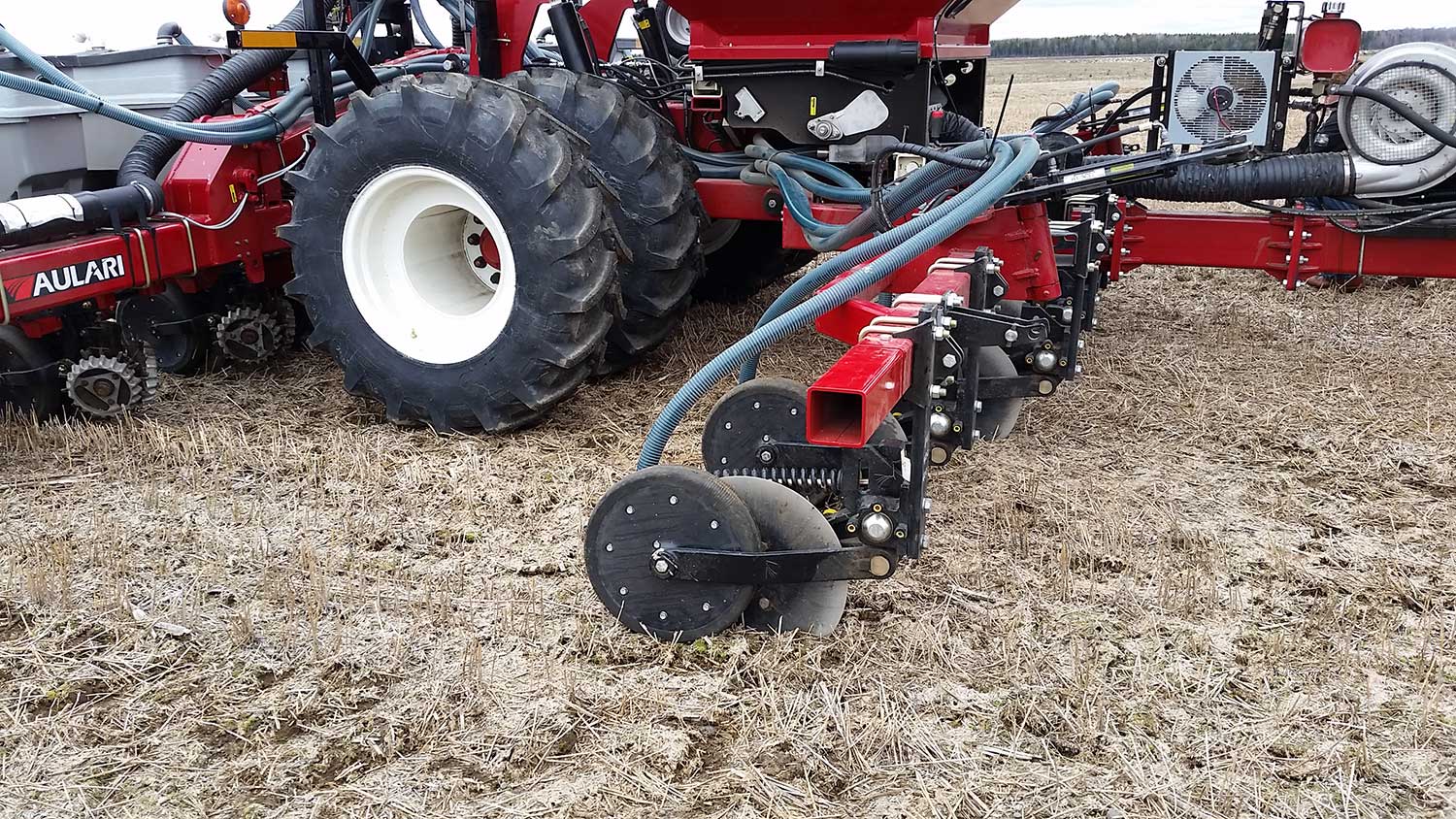

ALR0100
Symmetric components: you no longer have to keep separate parts for left and right coulters! Only the fertilizer boot and the mounting plate are LH or RH.
Easy disc replacement: simply remove the depth pin a drop the gauge wheel for full access to the disc!
Can be installed on most brands of planters and applicators.
Adapted to all tillage systems: from conventional to no-till.
5 easy-to-adjust depth settings
2 springs available
3-stage down pressure: quick adjustment
2 discs options: 18” or 20” diameter
3” x 16” depth control wheelo
7º disc angle
Rugged quenched steel construction
Greasable, carbon steel hub with tapered bearings
Manuals
- Aulari disc bearing assembly leaflet - Torquing procedure for the bearing.pdf
- Aulari disc part manual - AULARI coulters parts manual V2-BI.pdf

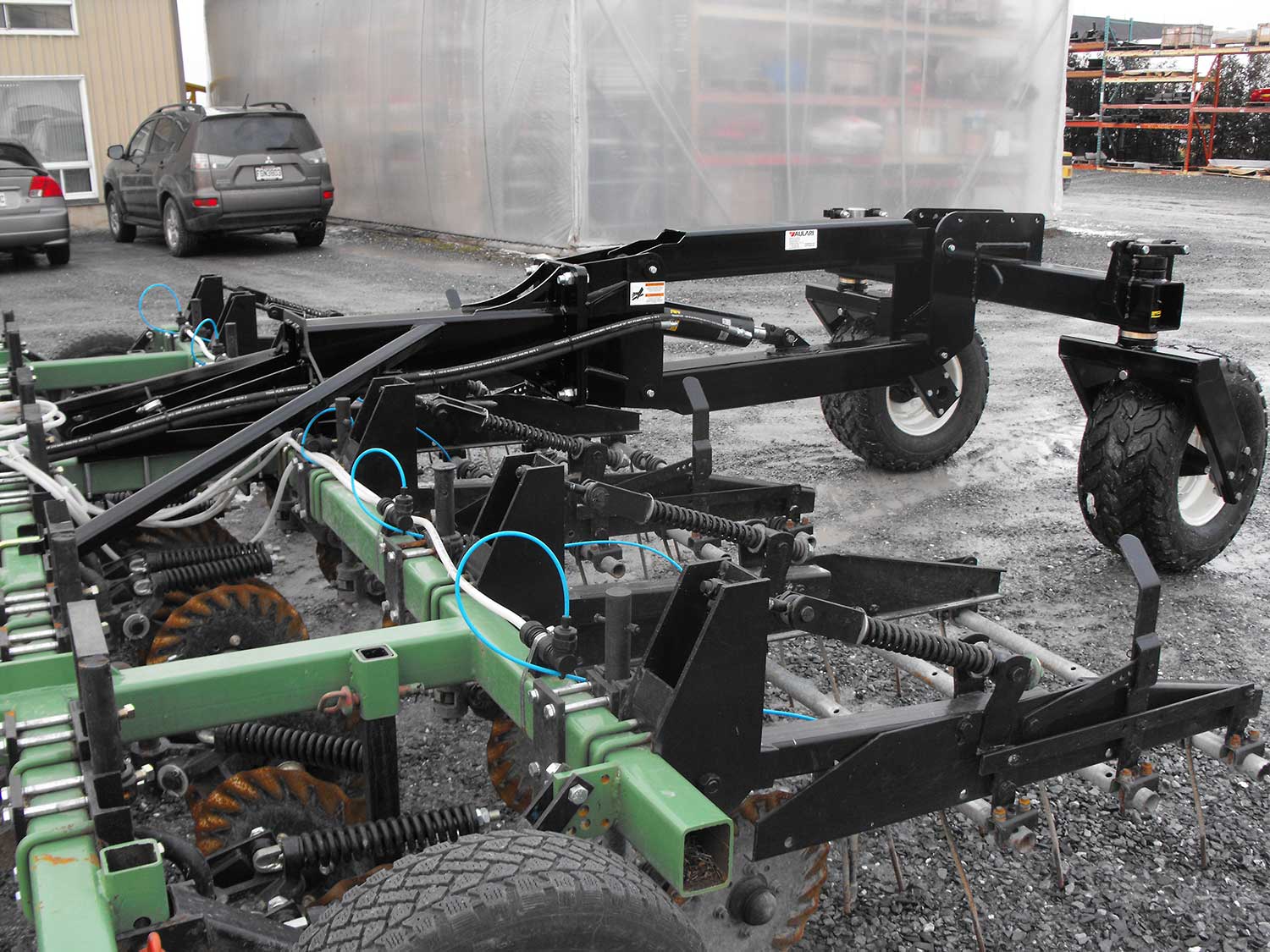

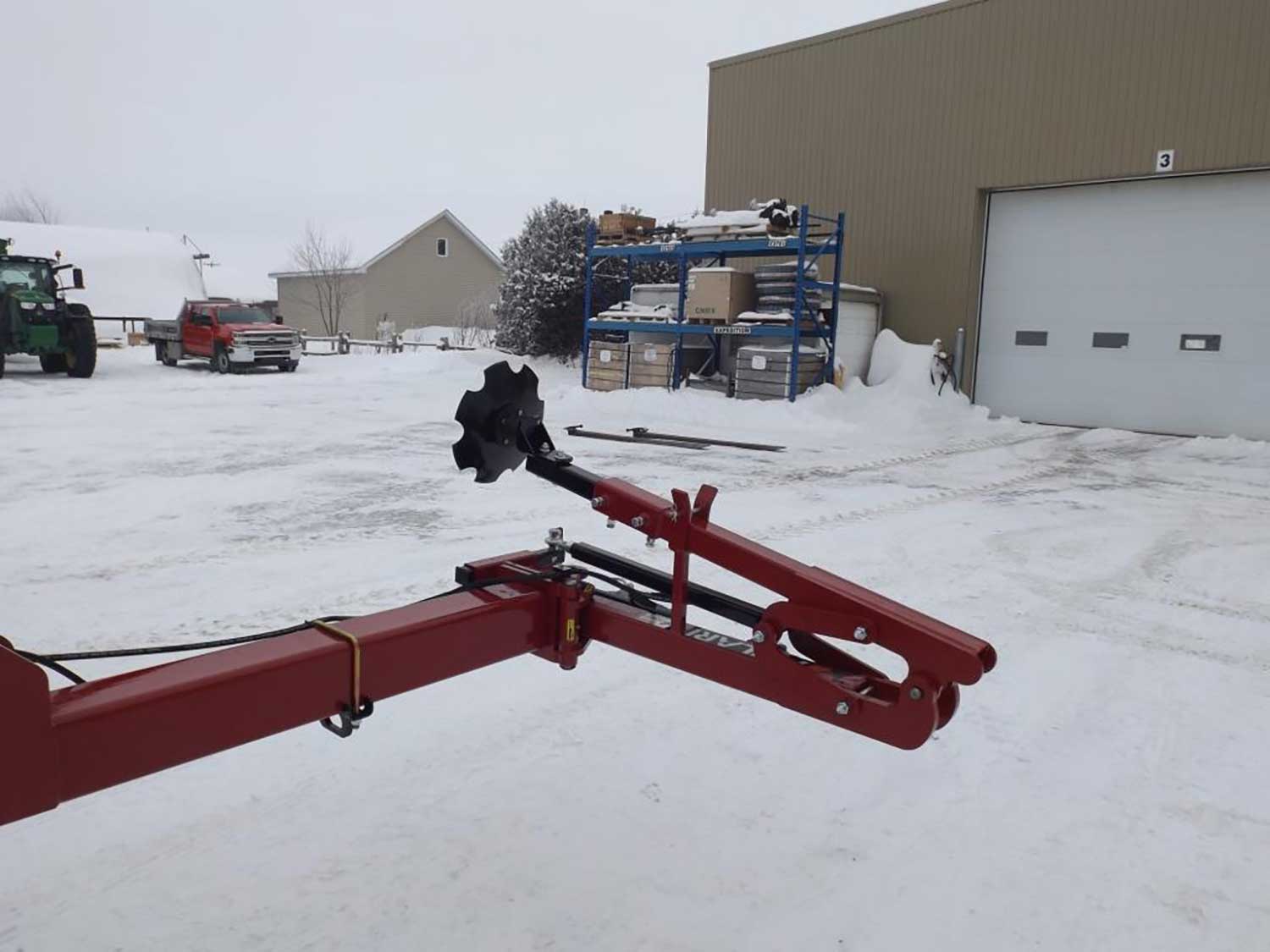

ALR6000
Flat fold markers
- Width 3 m to 12 m (10 to 40 feet)
- Hydraulic Fold
Manuel
- CASEIH_1210-1215_ALR6180NT.pdf

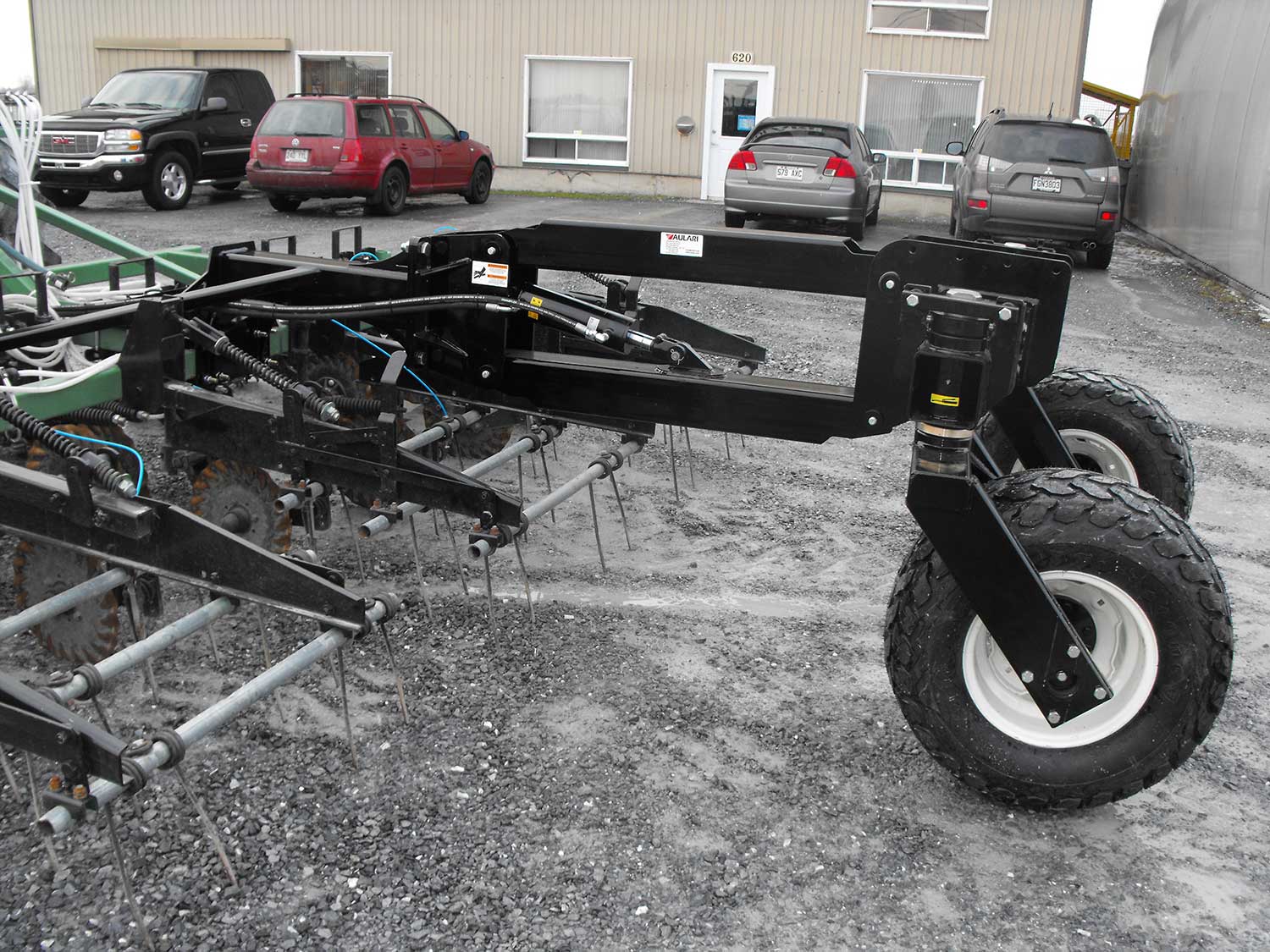

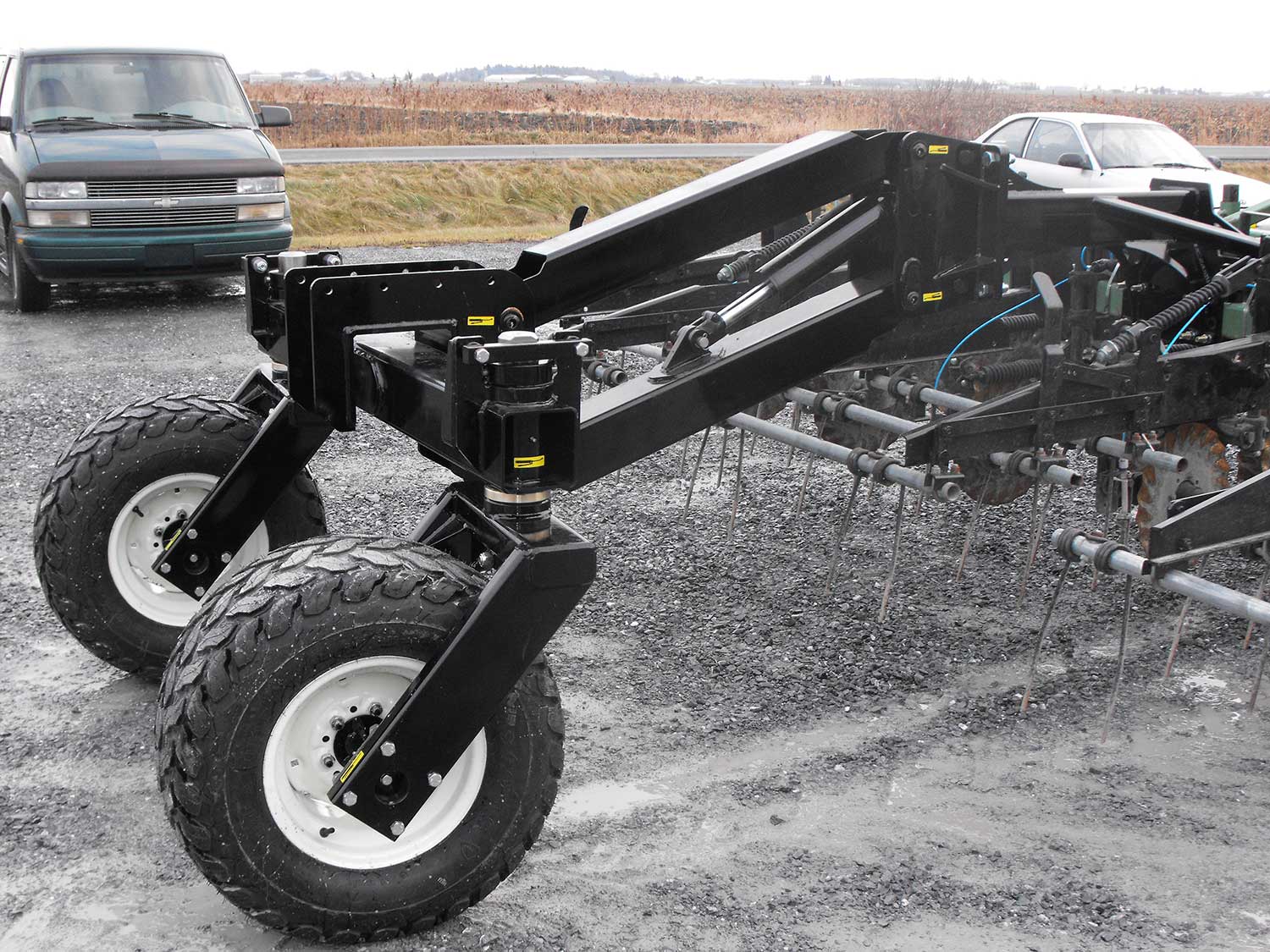

ALR0800
Lift assist
60 inch wheel base
Tandem pivot
Options:
- Liquid tank support
Manuals
- CASEIH_1210-1215_Roue_assistance_elevage-Manuel _pieces-Parts_manual.pdf

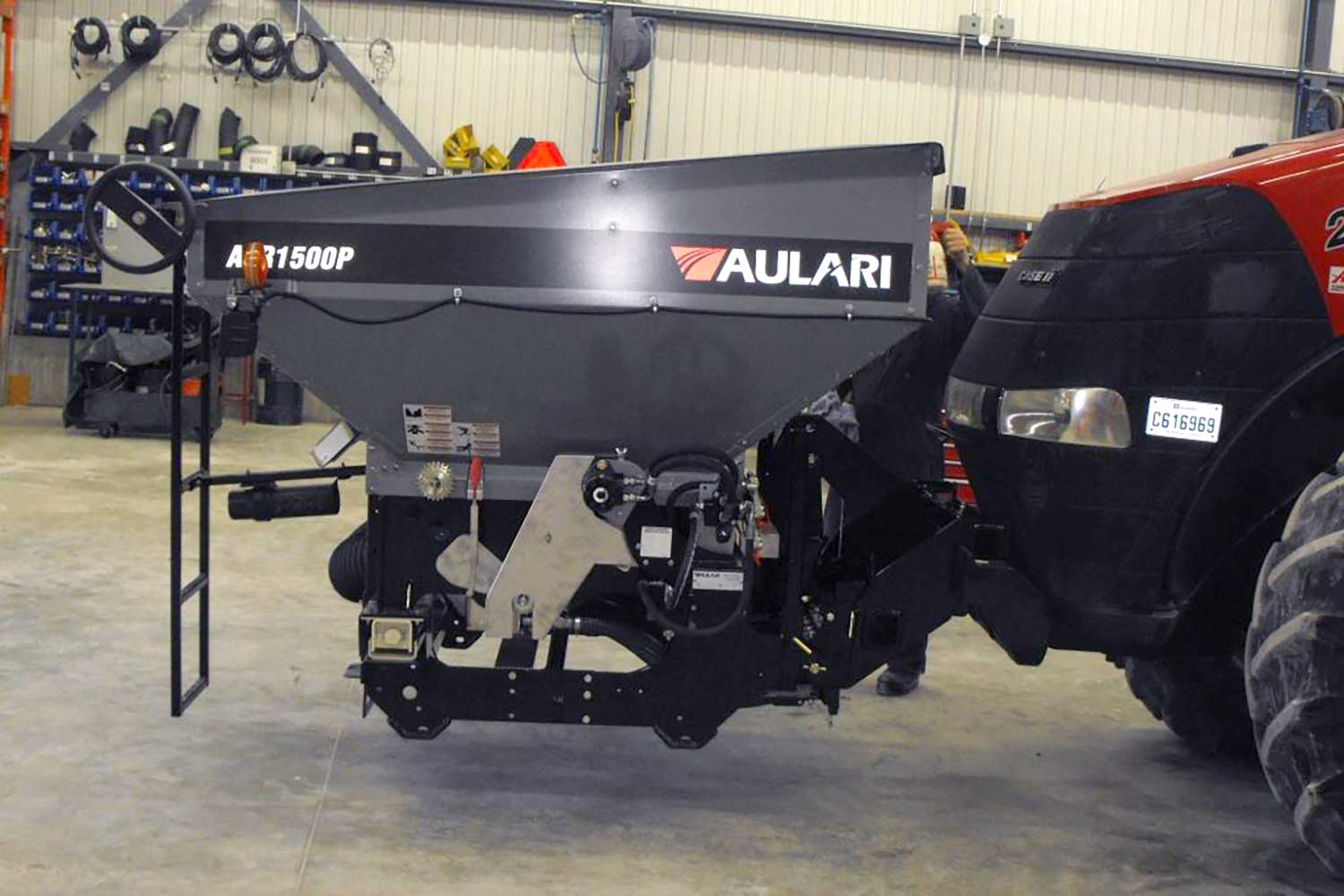

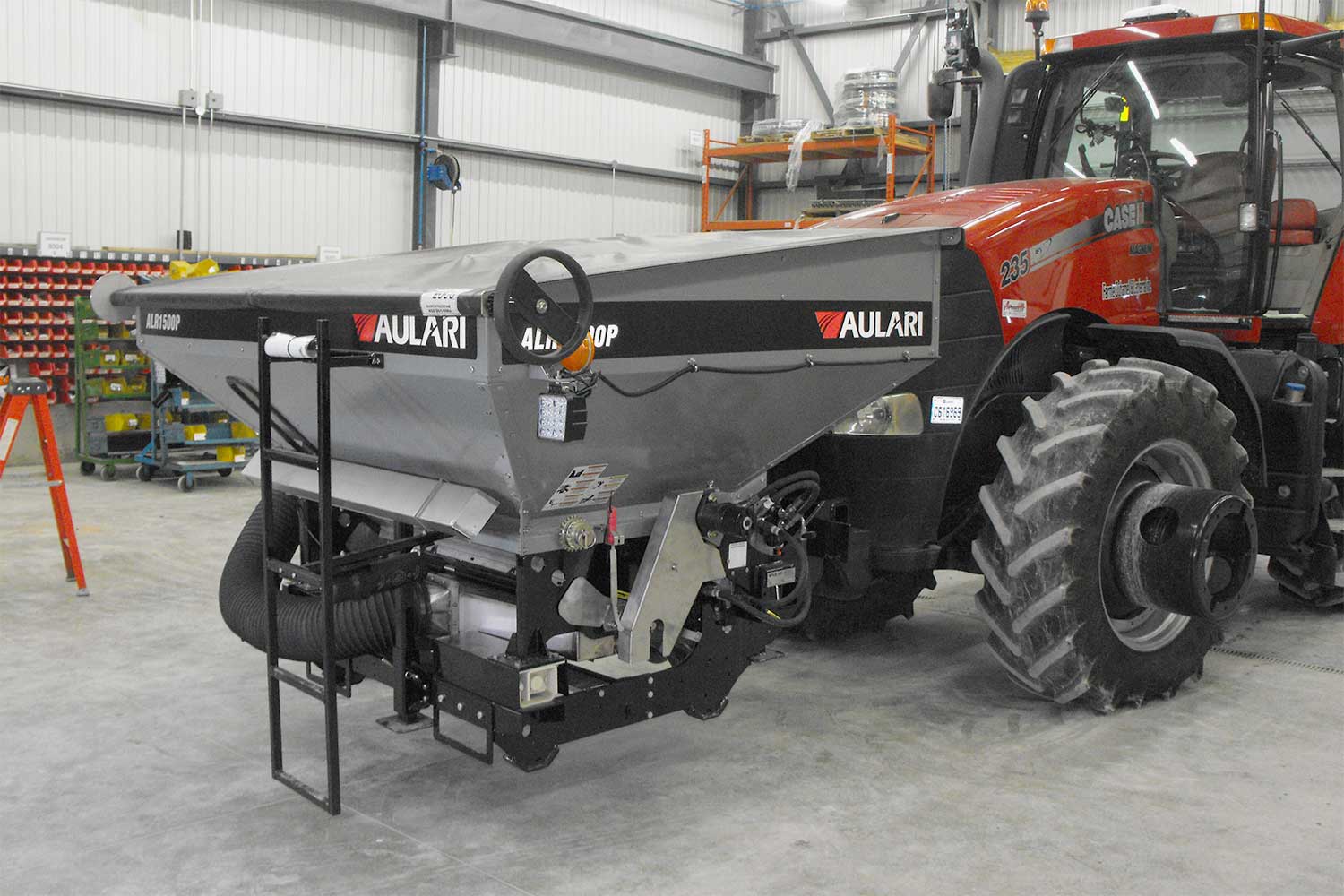

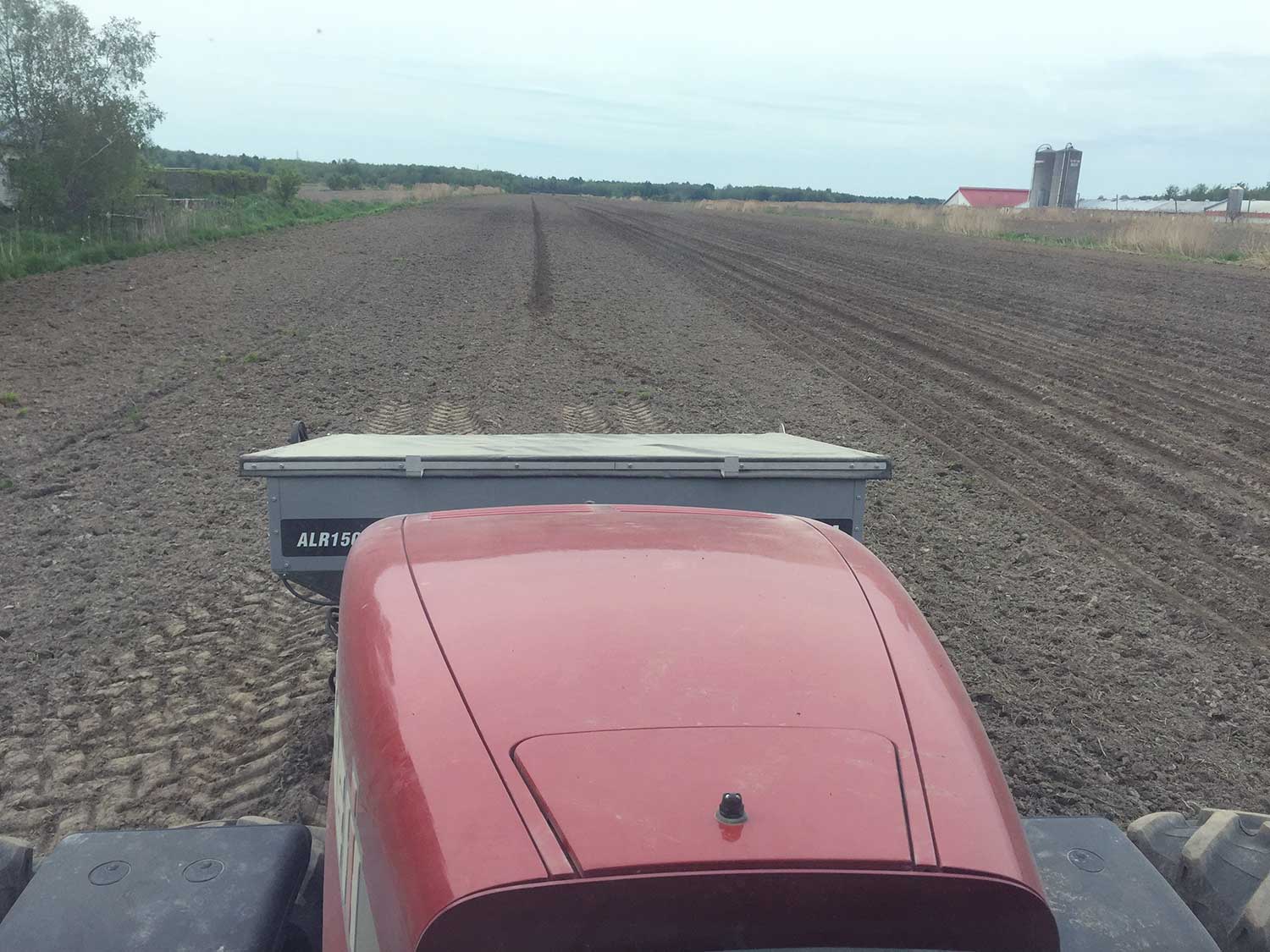

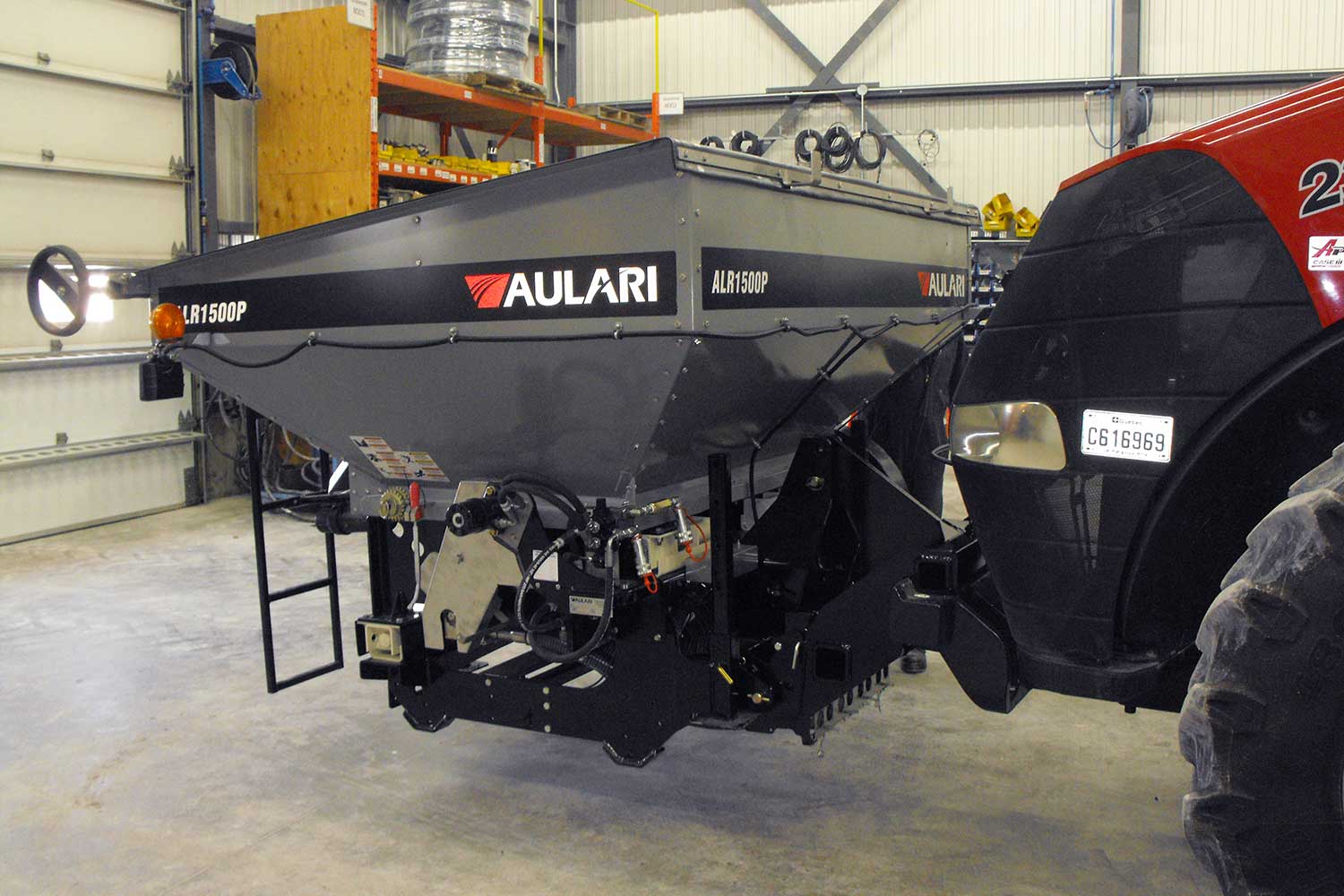

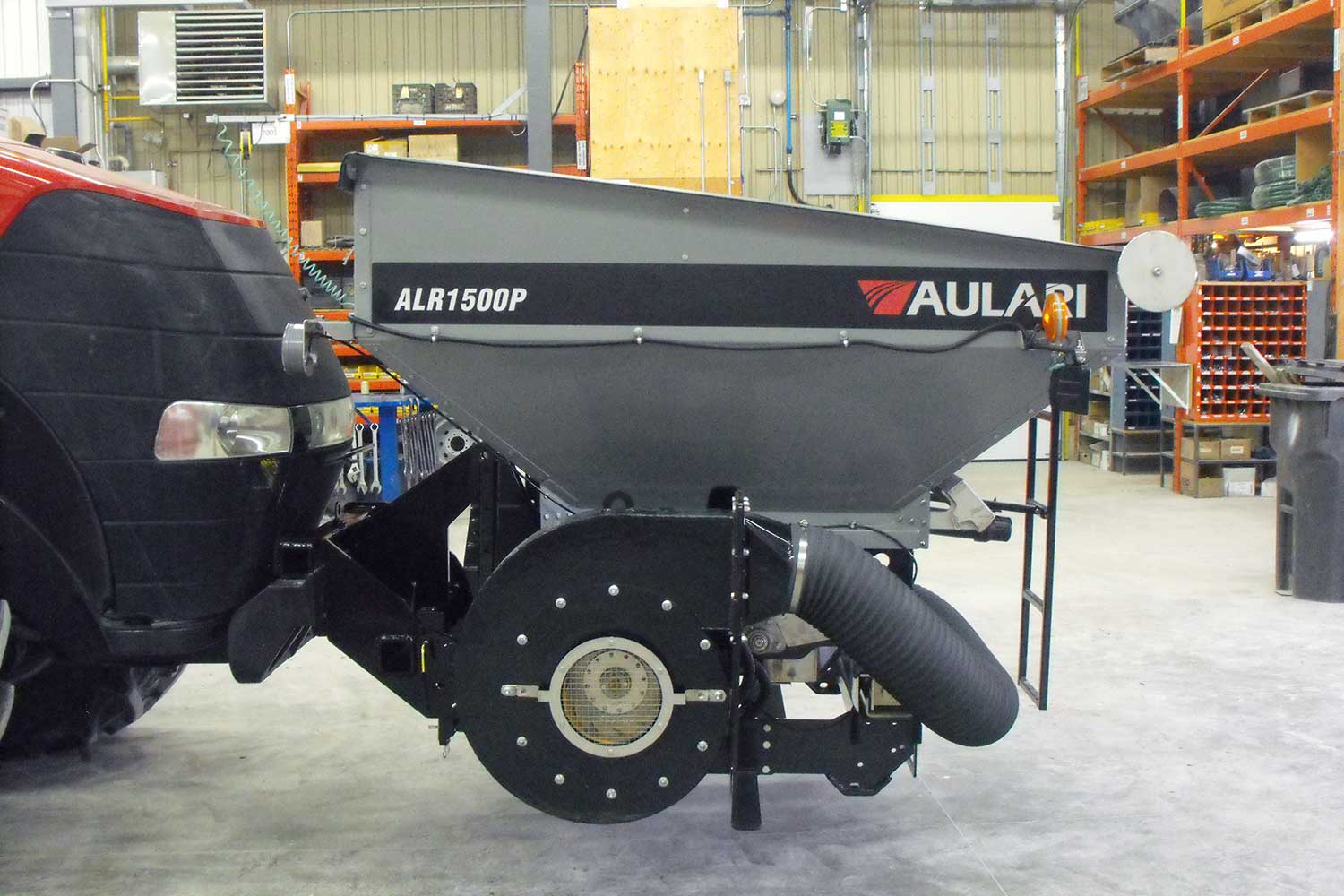

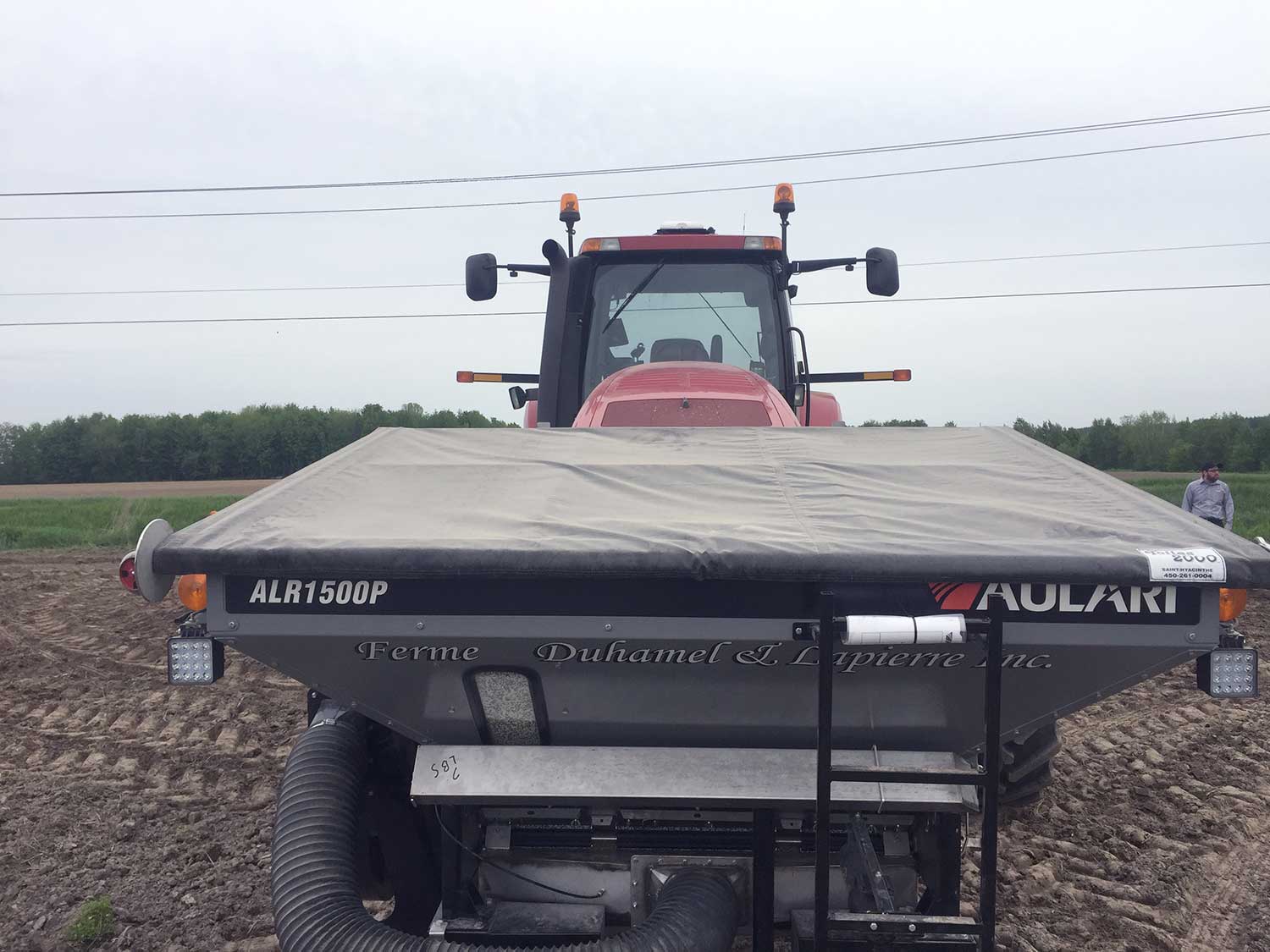

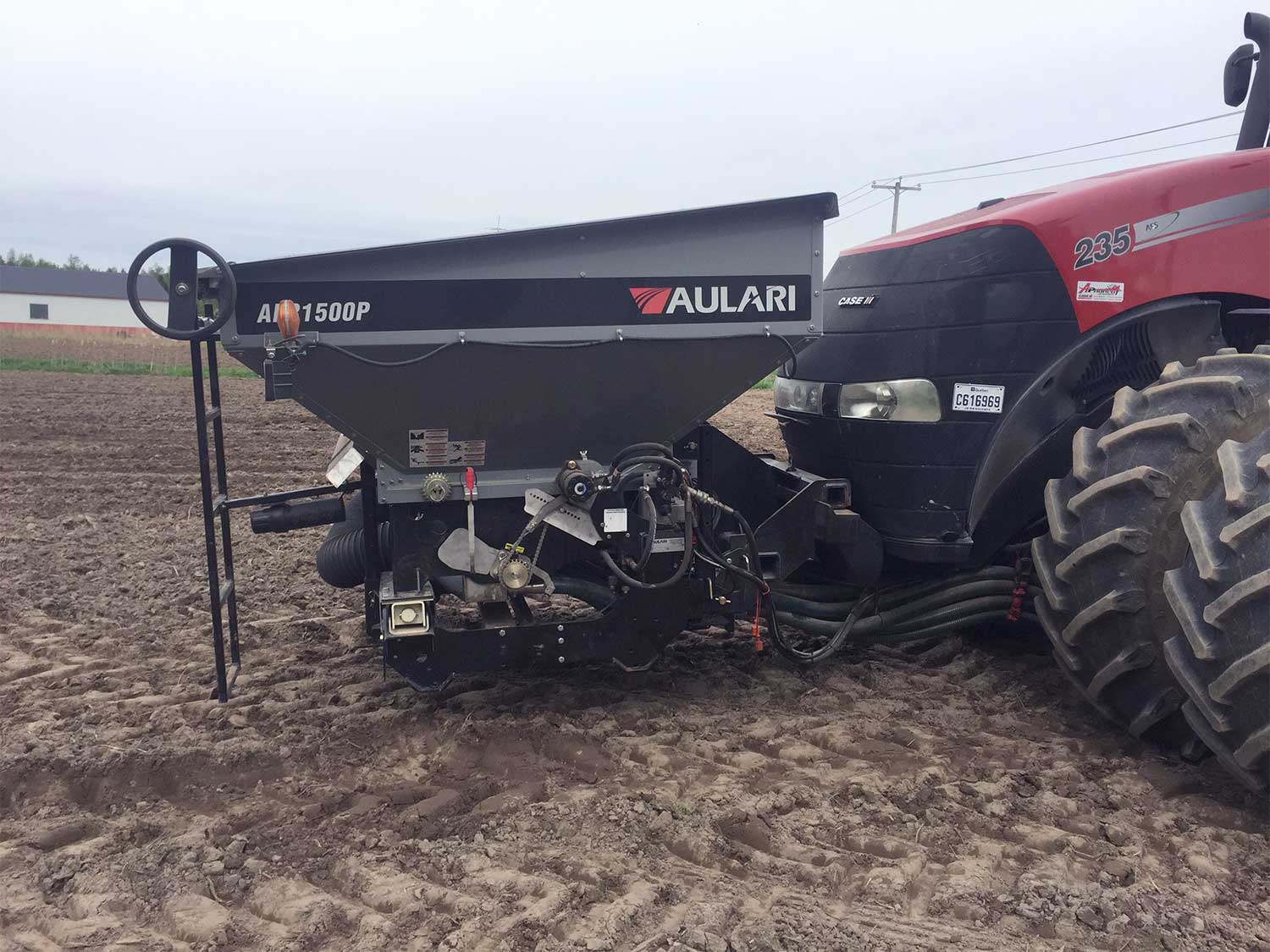

ALR1500P

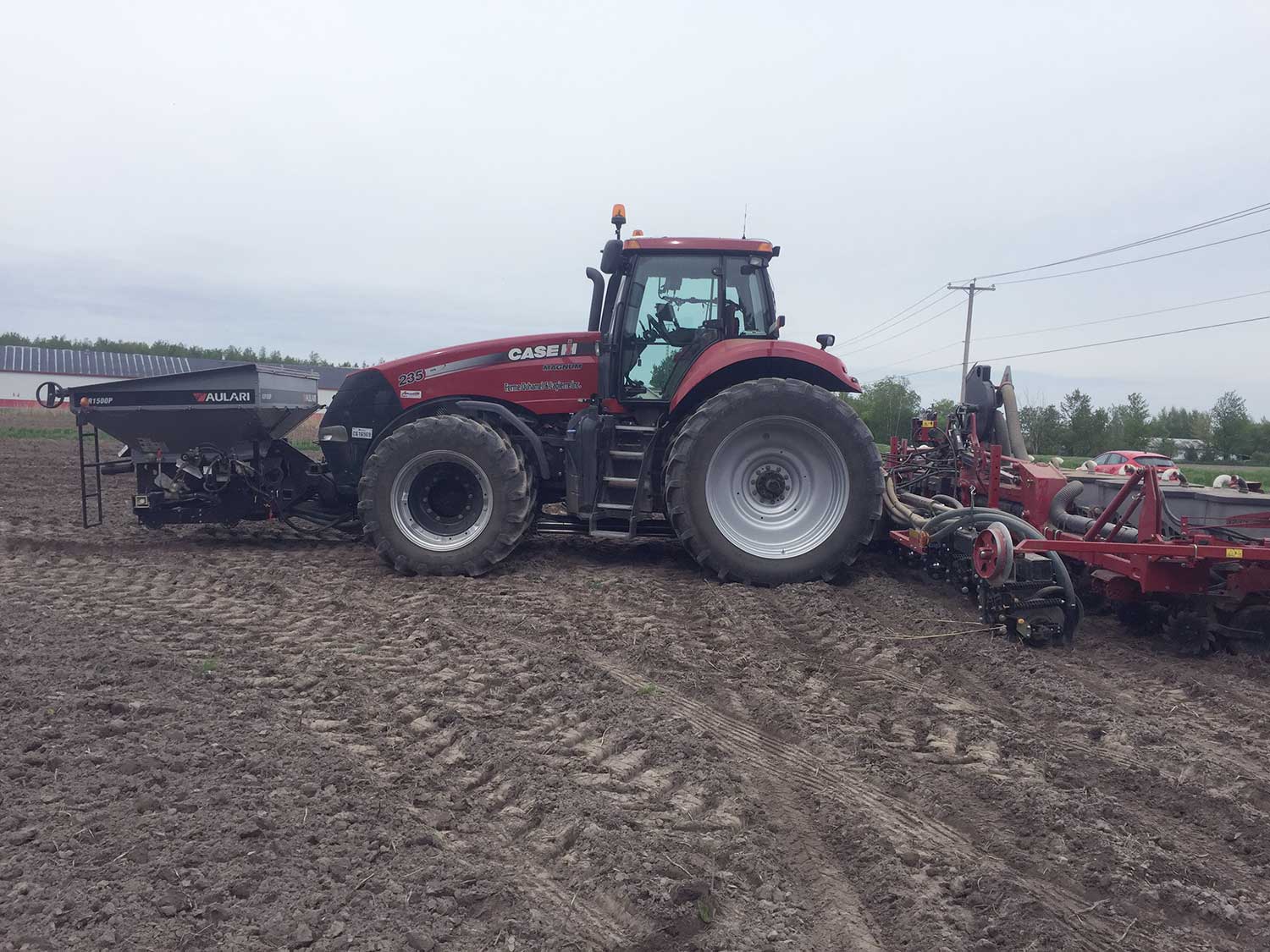

The ALR1500P pneumatic applicator for dry fertilizer and seed can be installed up front of the tractor or on the back with a 3 point hitch.
- Maximum Capacity2.5 tons (5 500lbs)
- Volume2300 litre (81 cubic feet)
- Maximum application width18 m (80 feet)
Options :
- Section control
- Scale
Manuals
- ALR1500P - 1 - Parts manual - Parts manual (R0).pdf
- ALR1500P - 2 - Parts manual - Parts manual (R0).pdf
- Operator's manual ALR1500P-V2-EN-2020-03.pdf
- Operator manual ALR1500P-V2-EN-2020-03.pdf

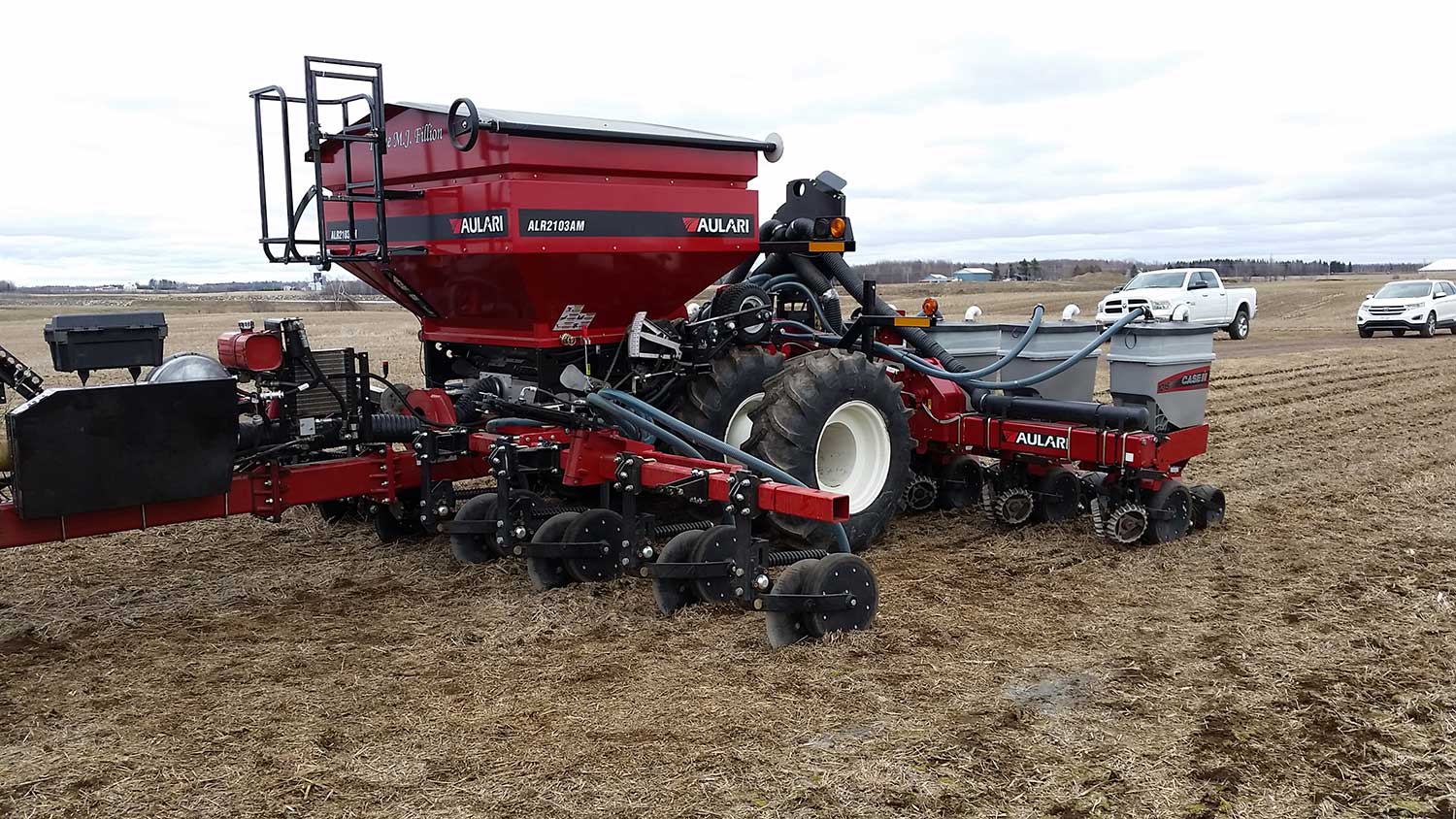

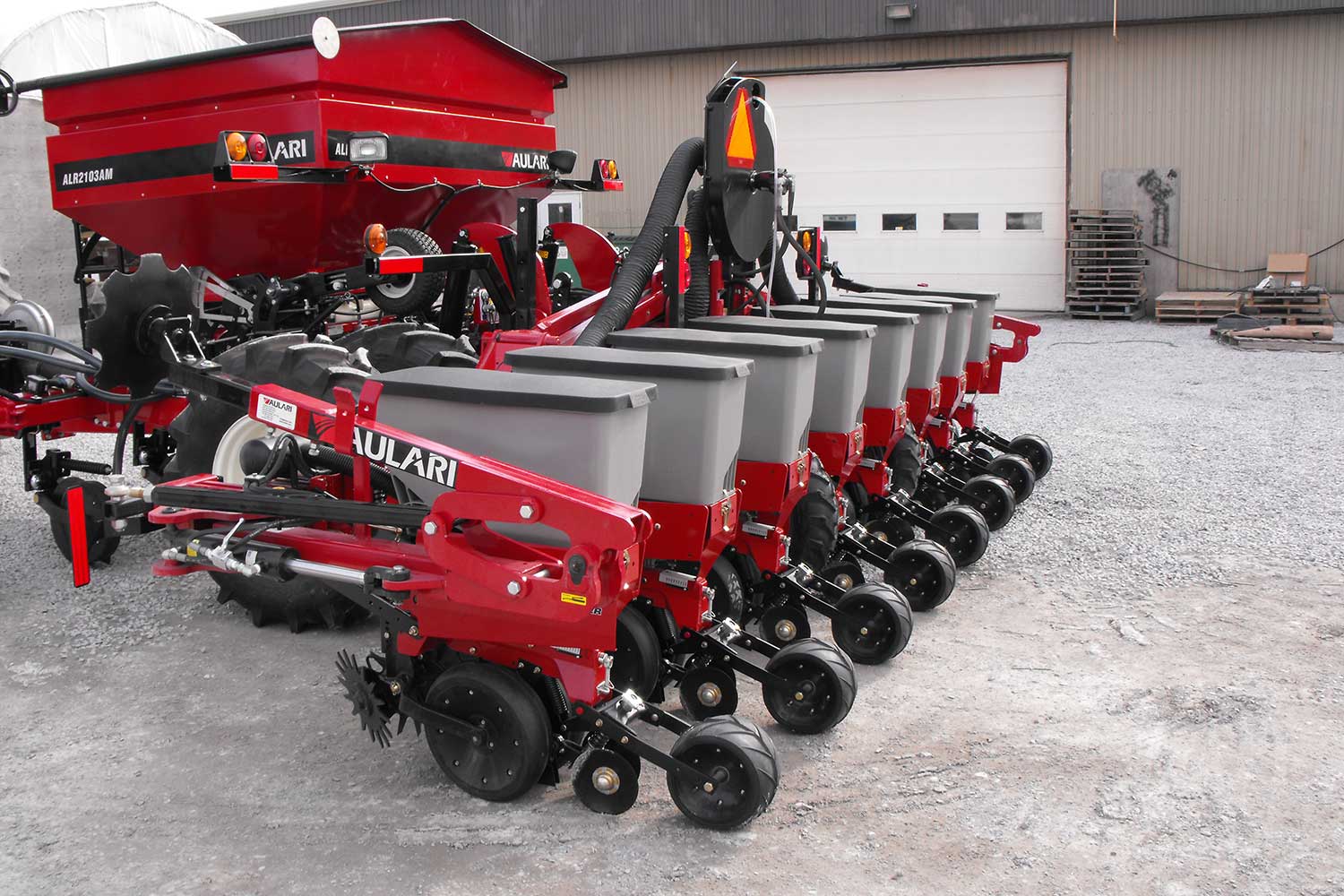

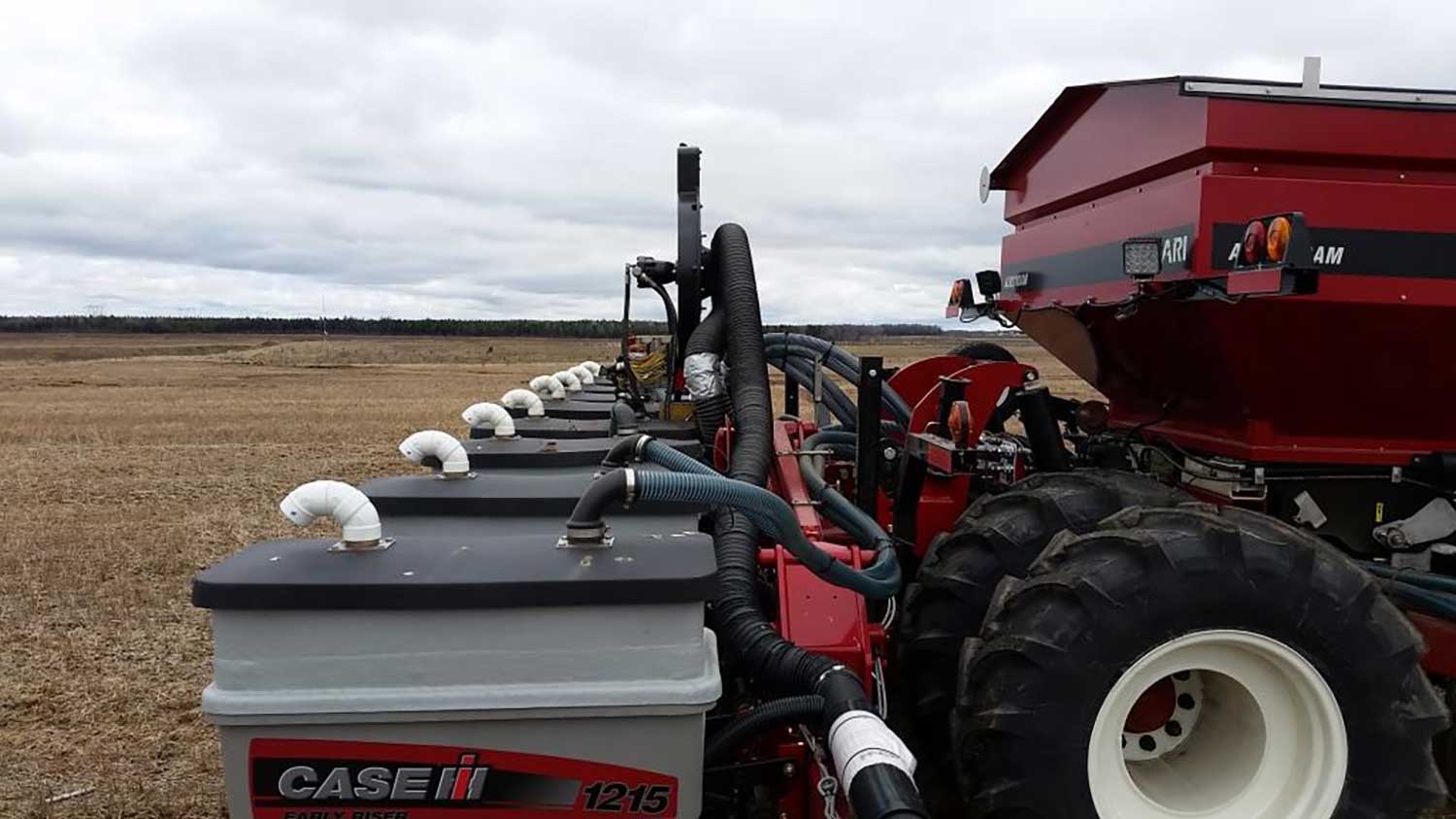

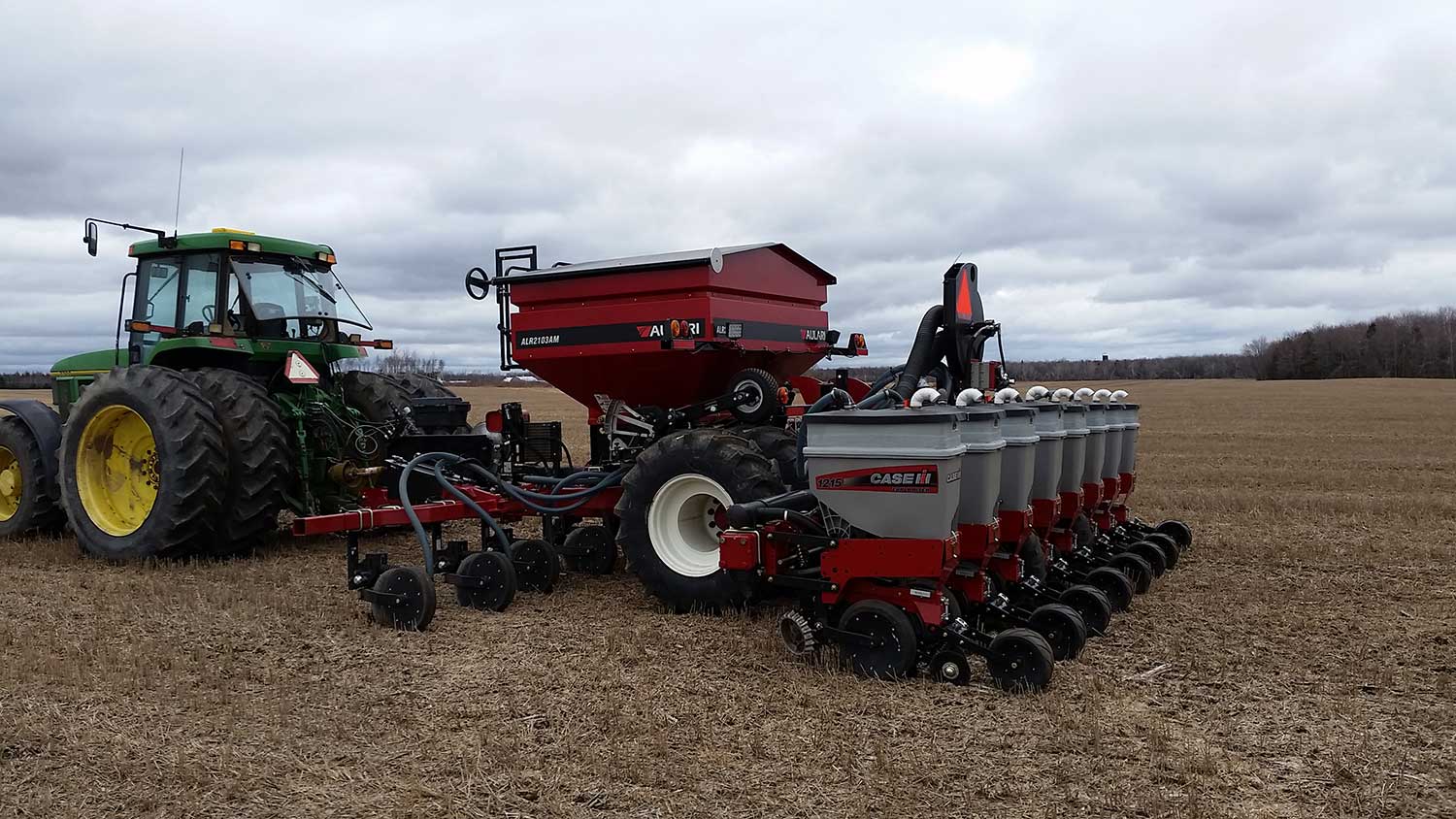

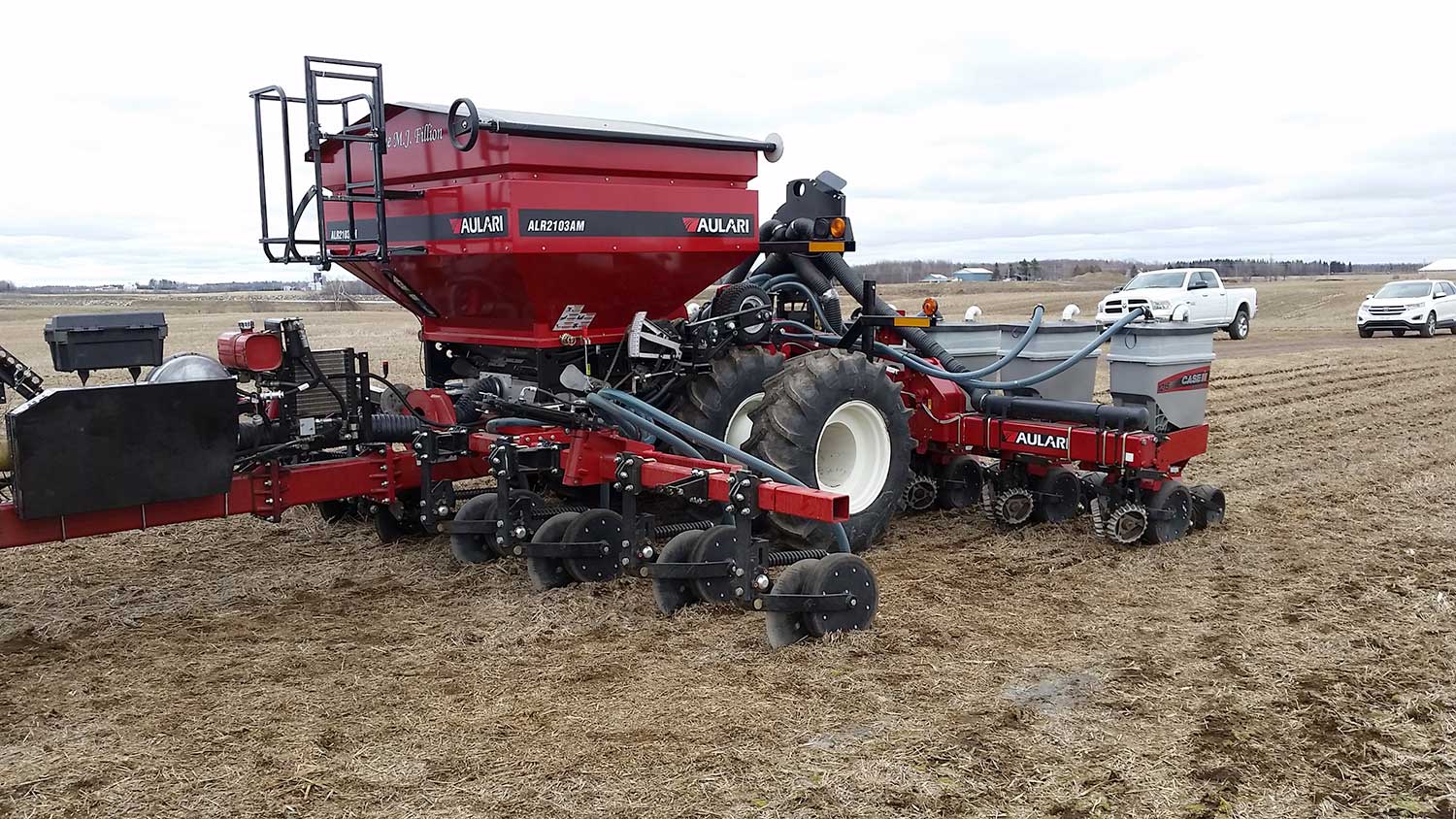

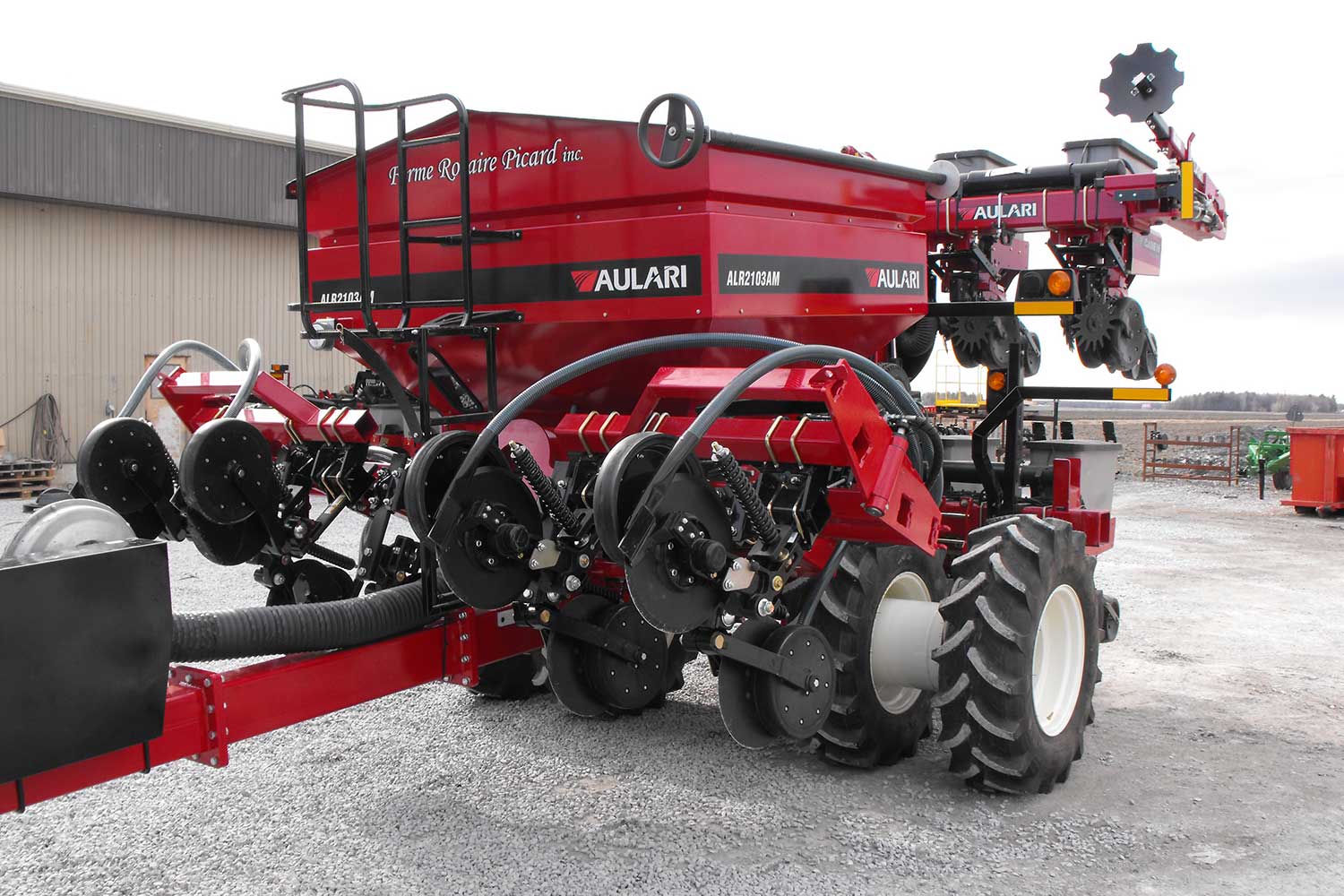

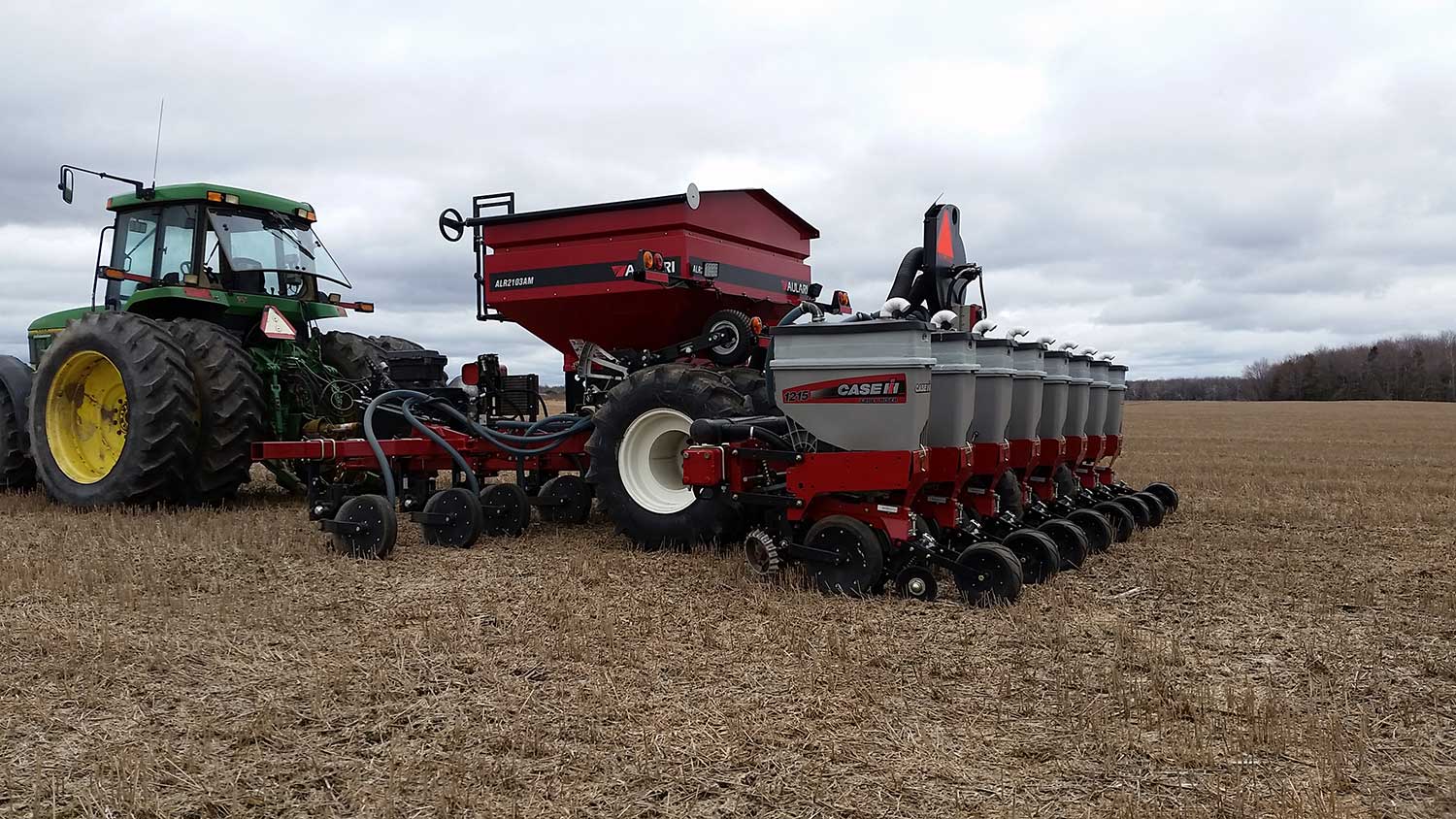

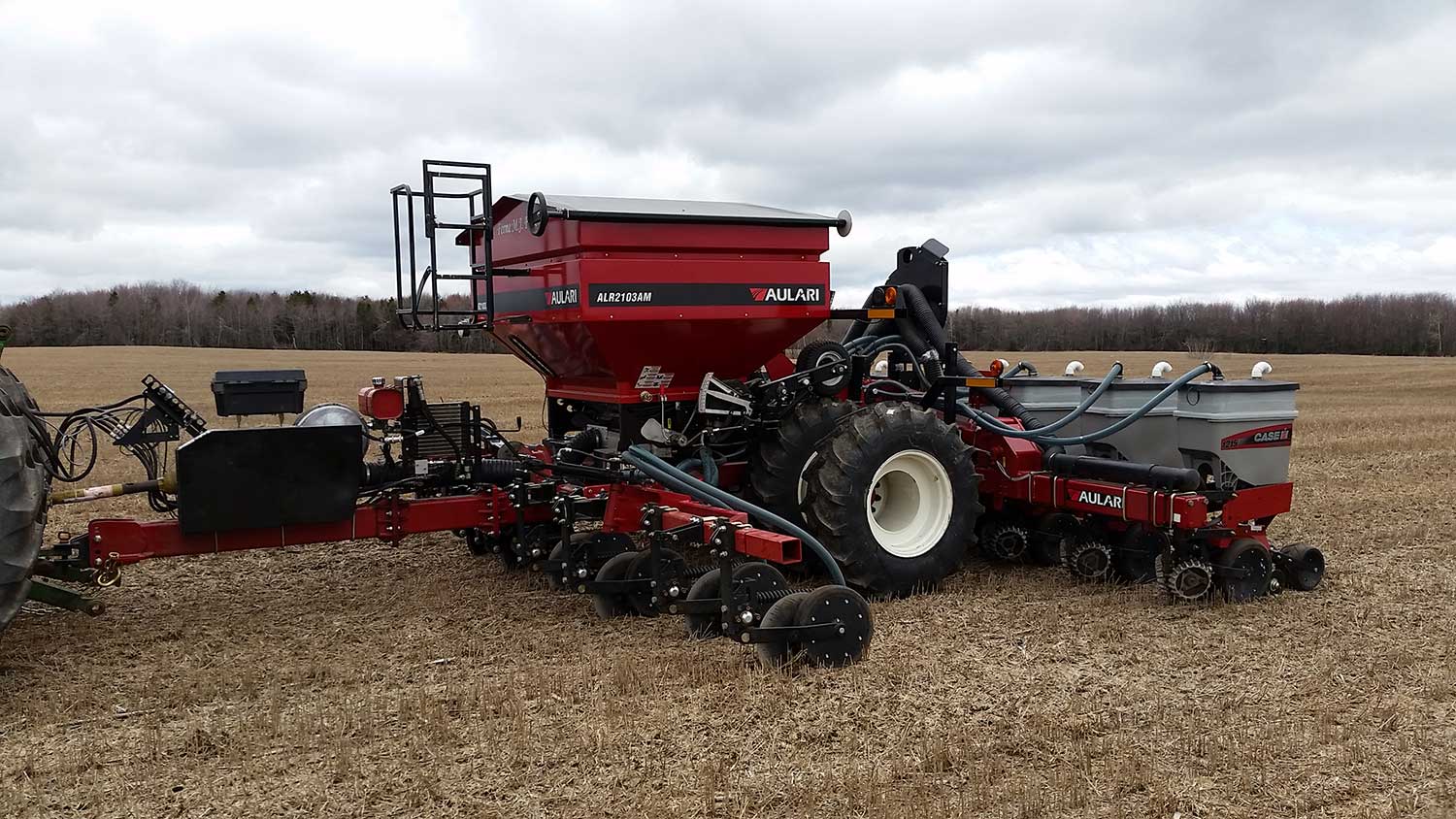

ALR2103AM
The ALR2103AM pneumatic applicator can place the fertilizer with high accuracy. It can attach an air-drill or 6 or 8 single or dual row planter. The pneumatic spreader incorporates fertilizer using a single disk opener providing a high quality work both at the planting time until later during the growing season with an air boom 18 m (60’), a strip till…
- Maximum capacity :4 tons (8 820 lbs)
- Volume : 3800 liter (135 cubic feet)
- Transport width : 3.35 m (11 feet)
Options :
- Section control
- Scale
Manuals
- ALR2103AM - Manuel de pieces - Parts Manual (R1).pdf
- ALR2103AM - Operator manual ALR2103-V1-EN-2016-06.pdf
ALR5500
Toolbars
Maximum width: 18 m (60 feet)
Options:
- Stack Fold
- Vertical fold
- Flexible wings
- Lift Assist
- Retractable (Reduce width in transport)
- Draw bar
- Liquid tank support
Manuals
- CASEIH_1210-1215_ALR5508.pdf
